Pannello di carta e gesso resistente al fuoco

9mm 12mm 15mm High Performance Fireproof Plasterboard Class A1 Non-Combustible Fire Rated Gypsum Board

Marchio:	SUNHOUSE
MOQ:	500 PZ
Capacità di fornitura:	3000000 metri/misurano per Mese

Informazione dettagliata

Descrizione di prodotto

Informazione dettagliata

Luogo di origine:

Guangdong

Garanzia:

1 anno

Servizio post-vendita:

Supporto tecnico online, ispezione in loco, pezzi di ricambio liberi

Applicazione:

interni, hotel, ville, appartamenti, edifici per uffici

stile di progettazione:

Moderno

Caratteristica:

Pannello di carta e gesso resistente al fuoco

Materiale:

Gesso naturale puro

Colore:

Rosso

Utilizzo:

Parete divisoria interna

Bordo:

Quadrato o rastremato

Spessore:

12,5 mm

Taglia regolare:

1220 mm*2440 mm

Imballaggi particolari:

Il nostro legname imballato in pallet o all'ingrosso/che imballa liberamente (pallet è coperto di bo

Capacità di alimentazione:

3000000 metri/misurano per Mese

Evidenziare:

9mm fireproof plasterboard

Class A1 fire rated gypsum board

15mm non-combustible plasterboard

Descrizione di prodotto

Class A1 Fire Rated Gypsum Board 9mm 12mm 15mm – 60 to 120 Minutes Non-Combustible Plasterboard

Engineered for maximum fire safety, our advanced fire rated gypsum board features a specially reinforced core with glass fiber reinforcement and high-efficiency fire retardant additives. Offered in three standard thicknesses (9mm, 12mm, and 15mm), this premium plasterboard provides exceptional flame resistance while delivering excellent acoustic and thermal performance for modern interior construction.

Superior Fire Protection Performance
Certified to Class A1 non-combustible standard, our board achieves near-zero flame spread and smoke development. When installed in standard partition or ceiling systems, the 12mm and 15mm versions consistently deliver 60 to 120 minutes of fire resistance, offering critical time for evacuation and minimizing structural damage.

Key Technical Advantages

Class A1 non-combustible core reinforced with glass fibers for outstanding fire endurance
Proven 60–120 minutes fire resistance in certified wall and ceiling assemblies
Excellent dimensional stability with minimal thermal expansion even at high temperatures
Enhanced sound insulation performance, improving STC ratings by 3–6 dB in typical partitions
Low thermal conductivity for improved building energy efficiency
Lightweight yet strong design for fast, labor-saving installation
Tapered edges that allow seamless jointing and a flawless painted finish
Extremely low formaldehyde emission, fully compliant with green building standards

Technical Specifications

Parameter	Specification
Product Name	Class A1 Fire Rated Gypsum Board
Standard Size	1200 × 2400 mm (custom lengths up to 3000 mm available)
Thickness Options	9 mm / 12 mm / 15 mm
Edge Type	Tapered Edge (standard) • Square Edge optional
Core Technology	High-purity gypsum core reinforced with glass fiber and fire retardants
Face Color	Pink / Red for easy fire-rated identification
Fire Resistance Duration	60–120 minutes (depending on system design)
Surface Burning Characteristics	Flame Spread Index: 0 • Smoke Developed Index: 0
Approximate Weight	9mm: 8.0 kg/m² • 12mm: 10.5 kg/m² • 15mm: 13.2 kg/m²
Thermal Conductivity	0.18 – 0.22 W/(m·K)
Compliance Standards	ASTM C1396, EN 520 Type F, GB/T 9775, ISO 9001, CE Marking

Proven Factory Project References

Selected Recent Projects:

• Delivered over 150,000 m² of 12mm and 15mm fire rated boards for a major hospital expansion project in Southeast Asia, achieving 90-minute fire resistance in critical corridors and treatment areas.

• Supplied 95,000 m² to a luxury hotel development in the Middle East, fully meeting local authority fire safety requirements for guest rooms and public zones.

• Provided 110,000 m² of Class A1 gypsum board for a large residential complex in Africa, contributing to the project’s successful green building certification.

With an annual production capacity exceeding 30 million square meters and fully automated quality control systems, our factory ensures consistent high performance across every batch.

Typical Applications

Residential apartments and multi-family housing for fire-rated walls and ceilings
Commercial developments including offices, hotels, shopping centers and retail spaces
Public infrastructure such as schools, hospitals, airports and cultural buildings
Industrial facilities and warehouses requiring effective fire compartmentation
High-risk zones including stairwells, escape corridors, elevator shafts and service areas
Building renovation projects aiming to upgrade existing fire safety levels

Packaging and Global Shipping

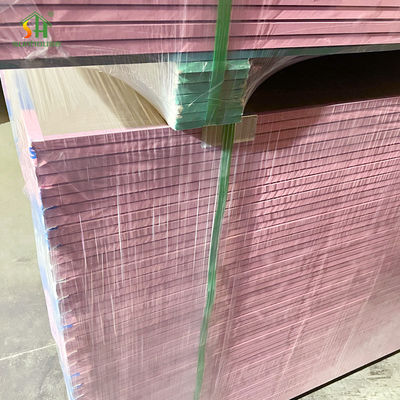

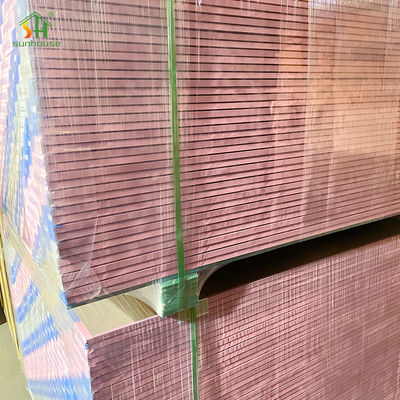

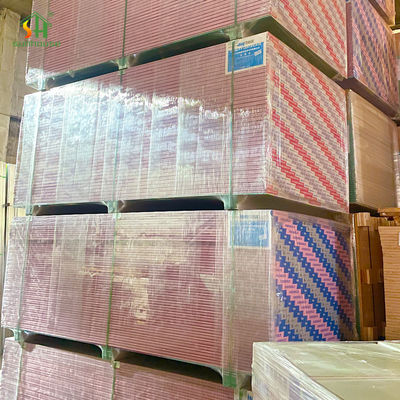

Boards are precisely cut, protected at edges, stacked on heavy-duty wooden pallets, and securely wrapped with moisture-resistant film. Each pallet carries clear labeling with full product details, batch numbers, and quantity for accurate tracking. Shipments are professionally loaded into containers or trucks with bracing to prevent movement during transit.

Frequently Asked Questions

Q: What does Class A1 non-combustible certification mean?
A: Class A1 is the highest non-combustible rating. Our boards will not burn or contribute to fire spread and produce virtually no smoke, providing the best possible passive fire protection.

Q: How long can the board withstand fire?
A: In properly designed systems, the 12mm and 15mm versions typically provide 60 to 120 minutes of fire resistance, giving occupants valuable evacuation time.

Q: Is the board suitable for humid locations?
A: It performs very well in standard interior environments. For bathrooms, kitchens or high-humidity areas, we recommend pairing it with moisture-resistant boards or additional waterproofing layers.

Q: Do you accept custom orders?
A: Yes. We offer full customization including special sizes, thicknesses, and project-specific requirements. Please share your detailed specifications for a prompt quotation.
