Laminated PVC Film Facing on Pressed Gypsum Core PVC Gypsum Ceiling Panels for Performance in Exposed Grid Suspended Ceiling Systems

Marchio:	SUNHOUSE
Numero di modello:	TH0005
MOQ:	100
prezzo:	$0.90-1.60

Informazione dettagliata

Descrizione di prodotto

Informazione dettagliata

Luogo di origine:

Guangdong, Cina

Garanzia:

1 anno

Servizio post-vendita:

Supporto tecnico online, ispezione in loco, pezzi di ricambio liberi

Capacità di soluzione del progetto:

progettazione grafica, progettazione di modelli 3D, soluzione totale per progetti

Applicazione:

Soffitto di Oiffer, dell'hotel e decorazione di Interion/hotel

stile di progettazione:

Moderno

Funzione:

A prova di fuoco, isolamento termico, a prova d'umidità, a prova di muffa, a prova di fumo, fonoasso

Caratteristica:

Soffitti artistici, soffitti del favo, soffitti integrati, soffitti perforati

Forma del soffitto di piastrelle:

Rettangolo

Tipo di piastrelle del soffitto:

soffitti in PVC

Misurare:

595x595mm, 600x600mm, 603x603mm, 605x605mm

Spessore:

7mm, 7.8mm, 8mm, 9mm…

Bordo:

Bordo quadrato con nastro adesivo o senza nastro

Densità:

280~350 kg/m3

Materie prime:

Cartongesso

Superficie:

Film importato o domestico del PVC

Certificato:

ISSO/CE disponibile

MOQ:

Contenitore 1*20GP

Campione gratuito:

Disponibile in qualunque momento

peso:

Leggero

Materiale:

PVC e gesso

Parola chiave:

Soffitto del gesso del PVC

Parola chiave:

Bordo del soffitto del PVC

Nucleo:

Cartongesso

Colore:

Bianco (personalizzabile)

Tipo di montaggio:

Cada dentro

Metodo di installazione:

sistema del controsoffitto

Impermeabilità:

Impermeabile

Evidenziare:

laminated PVC gypsum ceiling panels

pressed gypsum core ceiling panels

exposed grid suspended ceiling systems

Descrizione di prodotto

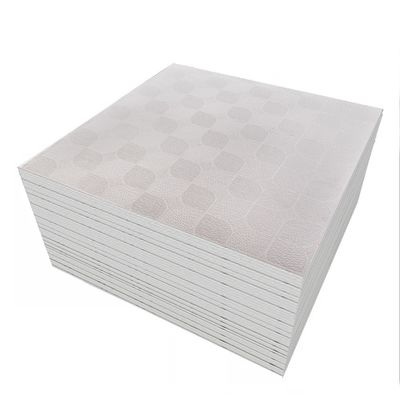

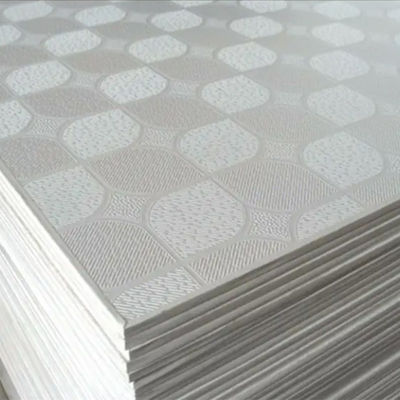

PVC Laminated Gypsum Ceiling Panels – 595×595 mm Exposed Grid Suspended Ceiling Tiles

PVC laminated gypsum ceiling panels are composite interior finishing materials consisting of a pressed gypsum core with a factory-bonded PVC film facing. They are specifically developed for exposed T-bar grid suspended ceiling systems where moderate moisture resistance, surface cleanability, and acoustic control are required. These panels are widely specified in commercial and institutional projects due to their balance of cost-effectiveness, installation efficiency, and functional performance.

Technical Specifications

Parameter	Specification
Nominal Dimensions	595 × 595 mm, 600 × 600 mm, 603 × 603 mm, 605 × 605 mm
Thickness Range	7.0 mm, 7.8 mm, 8.0 mm, 9.0 mm
Edge Configuration	Square edge (plain or with optional reinforcing tape)
Core Density	280 – 350 kg/m³ (±10% tolerance)
Core Composition	Gypsum with mineral additives for improved dimensional stability
Surface Layer	PVC film lamination (0.08–0.12 mm thickness, matte/satin/embossed options)
Performance Properties	Moisture resistance (surface), wipe-clean capability, Class B1 fire retardancy (perforated variants offer NRC 0.45–0.65)

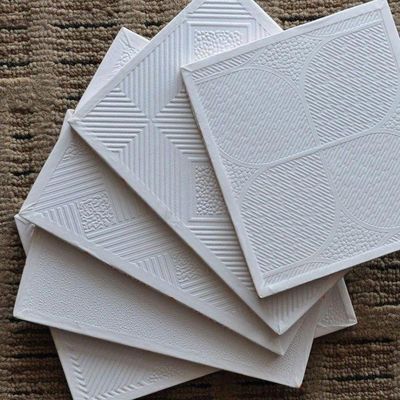

Available Surface Designs	Plain, random perforation, regular perforation, sand texture, geometric, simulated wood grain
Grid Compatibility	15 mm and 24 mm exposed T-bar systems
Typical Service Environments	Commercial offices, hotels, hospitals, schools, retail spaces, and light industrial facilities

Market Demand Analysis

According to recent industry reports (China Building Materials Federation and global interior fit-out statistics 2024–2025), demand for PVC laminated gypsum ceiling panels has grown steadily due to the rapid expansion of commercial real estate and healthcare infrastructure in Asia and the Middle East. Key drivers include stricter indoor air quality regulations, increasing focus on maintenance efficiency in humid climates, and the need for cost-effective acoustic solutions in open-plan offices. Perforated variants are particularly sought after in environments requiring Noise Reduction Coefficient (NRC) values above 0.50.

Installation and Handling Guidelines

Engineering Recommendations:

• Store panels flat on level dunnage in a controlled warehouse (relative humidity ≤ 85%, temperature 10–35°C). Maximum recommended stacking height is 8 panels to avoid core compression.
• Acclimatization period of minimum 24–48 hours is required before installation to equalize moisture content with the site environment.
• Installation should only proceed when ambient conditions are within 5°C to 40°C and relative humidity does not exceed 90% for prolonged periods.
• Cutting operations must be carried out with dust extraction or appropriate PPE (dust mask FFP2, safety goggles) due to gypsum dust generation.
• The supporting T-bar grid must be installed to a maximum deflection of L/500 and securely fixed per load calculations.
• Routine maintenance: wipe surface with neutral pH cleaner. Avoid solvent-based products that may cause delamination of the PVC film.
• Perforated panels should undergo quarterly inspection for dust buildup to preserve designed acoustic performance.

Project References

Documented Supply Cases:

• 26,000 m² of 8.0 mm perforated panels supplied for a 28-storey Grade-A office tower in Southeast Asia. Post-installation acoustic testing showed average NRC of 0.58 across open-plan floors.

• 14,500 m² of 7.8 mm plain-finish panels installed during the renovation of a 180-room business hotel. The PVC surface demonstrated excellent resistance to frequent cleaning in high-traffic corridors.

• 11,200 m² of 9.0 mm sand-texture panels used in a 450-bed regional hospital project. The system met hospital-grade cleanability requirements and contributed to low particulate levels in clinical areas.

Frequently Asked Questions

Q1. What are the recommended storage and acclimatization requirements?

A: Panels must be stored flat in a dry warehouse with humidity controlled below 85%. A minimum 24-hour acclimatization period at the installation site is strongly recommended before fixing.

Q2. What payment and trade terms are standard?

A: Typical terms are 30% T/T deposit and 70% balance prior to shipment, or irrevocable L/C at sight. We support FOB, CFR, and CIF quotations.

Q3. What is the standard production lead time?

A: For standard sizes and finishes, production lead time is 20–25 working days after deposit confirmation. Custom patterns or colors may extend this period.

Q4. Do you support OEM and custom surface designs?

A: Yes. We can manufacture according to client-provided specifications, patterns, or color requirements, subject to technical feasibility and minimum order quantity.

Q5. Are samples available for testing?

A: Standard samples can be supplied free of charge. The requesting party is responsible for international courier costs.
